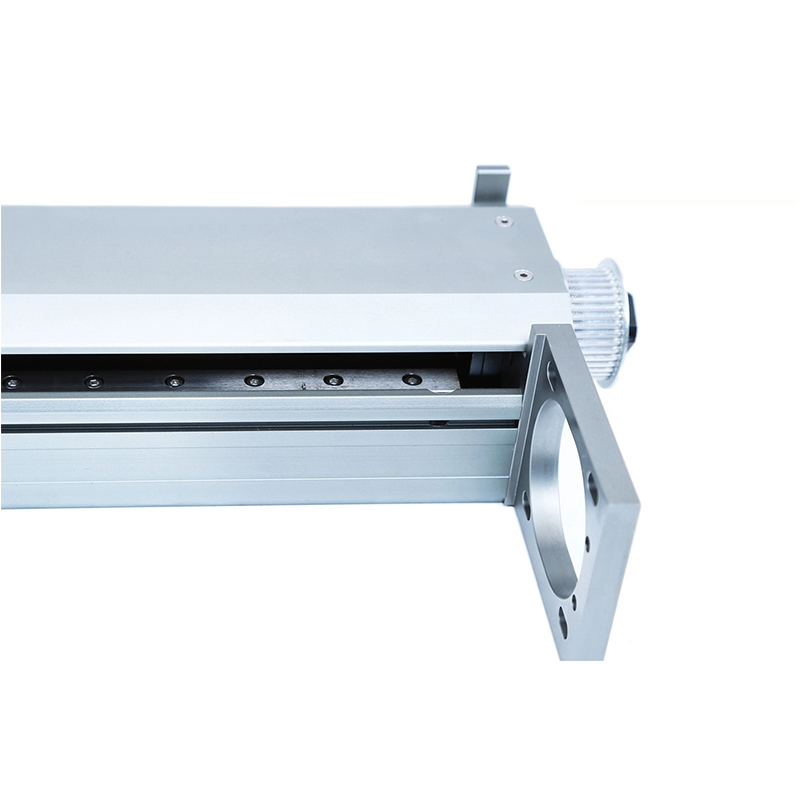

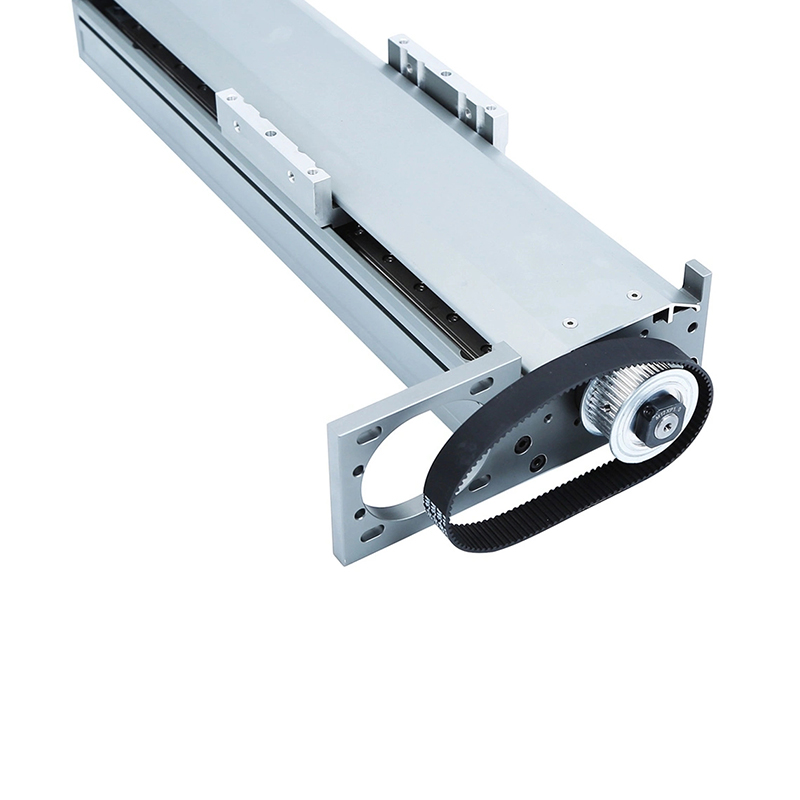

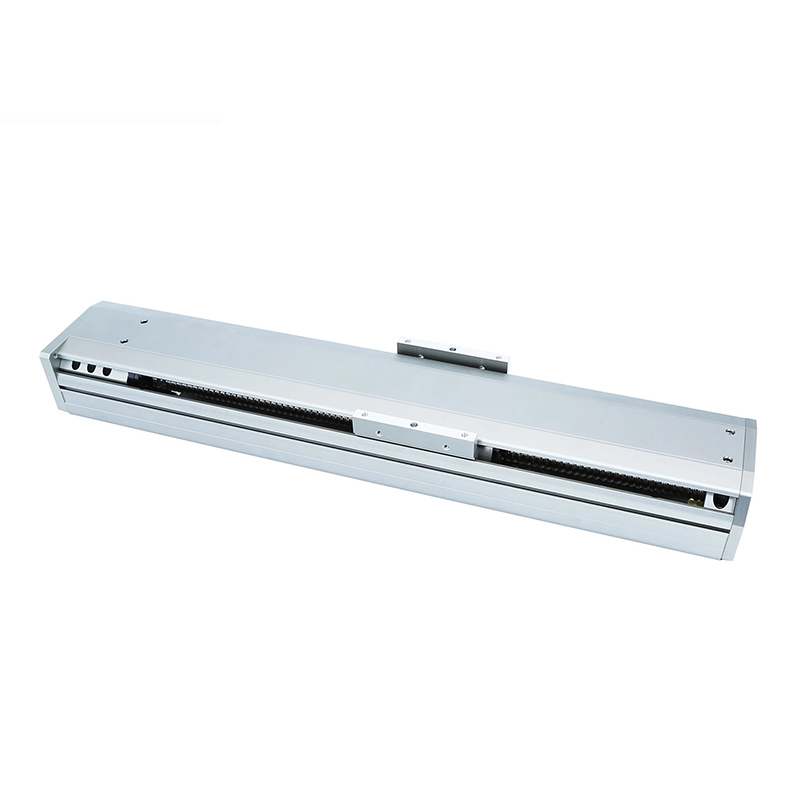

Features: ETB series actuator comes with a highly durable belt that can be assembled in four various slide option positions.
This Standard Belt Driven Actuator can be installed with either a PU Belt (Clean Room AT5, with steel mesh) or a Rubber Belt (Normal Environment 5GT, with Glass Fiber).
All of these ETB Actuators come with a belt adjusting mechanism that can be checked or tightened/loosened at anytime.


Applications:
• Perfect for long-stroke (over 1500 mm), high-speed applications including, point-to-point material handling, dispensing, and gluing. • Perfect for use in production line workpiece setup, labeling, and CNC material handling equipment.

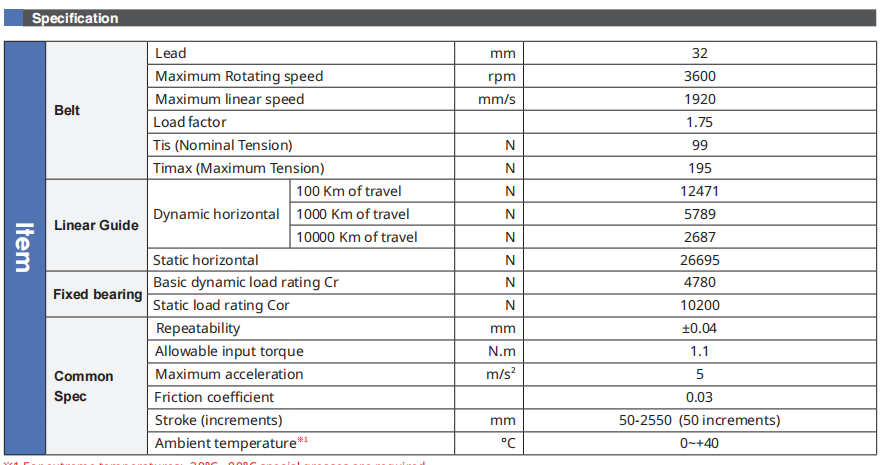

Product Name	Single Axis Stage
Material	Aluminum, Aluminum+Stainless steel
MOQ	1pcs
Service	OEM/ODM
Repeatability	+0.04 (mm)
Maximum Speed	2000mm/sec (w/ 32mm lead)

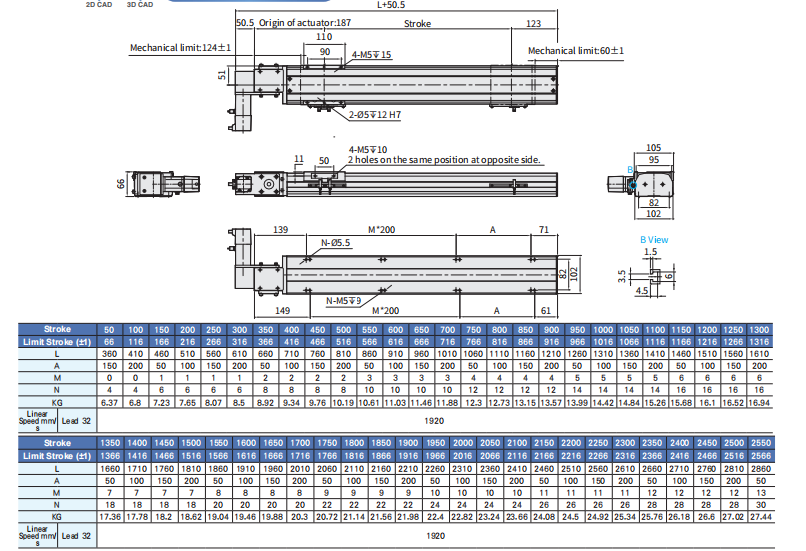

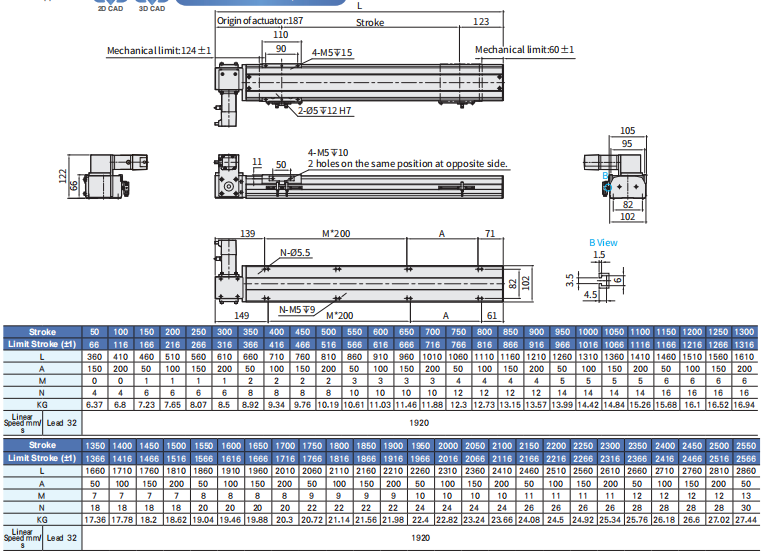

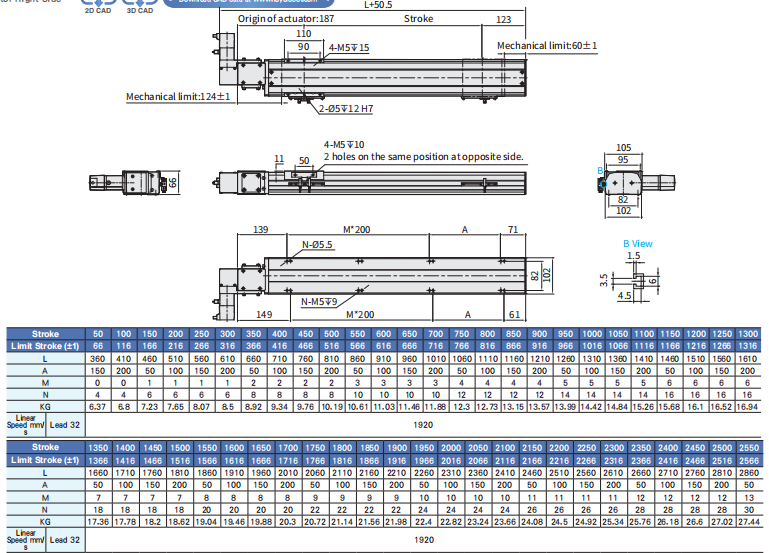

Available Stroke Lengths	50-1250 mm
